High altitude work platform hydraulic cylinder

      Newstar has entered the field of aerial work platform since 2009, and has maintained close cooperation with JLG which is the world's largest manufacturer of aerial work platform.The hydraulic cylinder of Newstar aerial work platform has extremely high safety and reliability, which provides an important guarantee for the construction personnel to work safely at altitude.

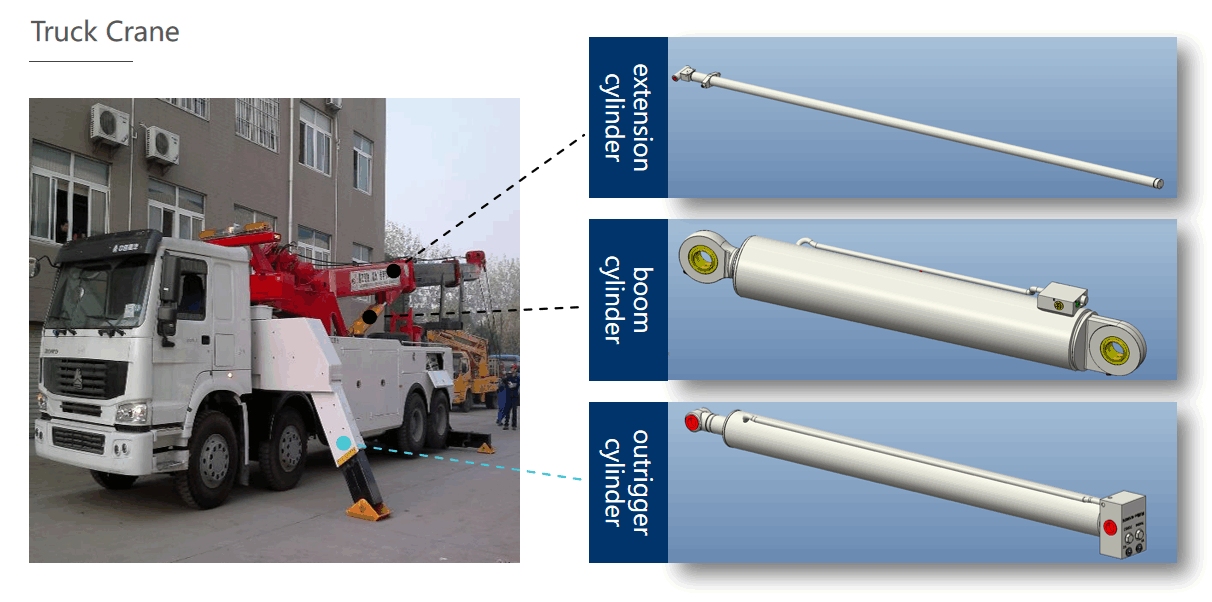

Truck Crane: extension cylinder; boom cylinder; outrigger cylinder;

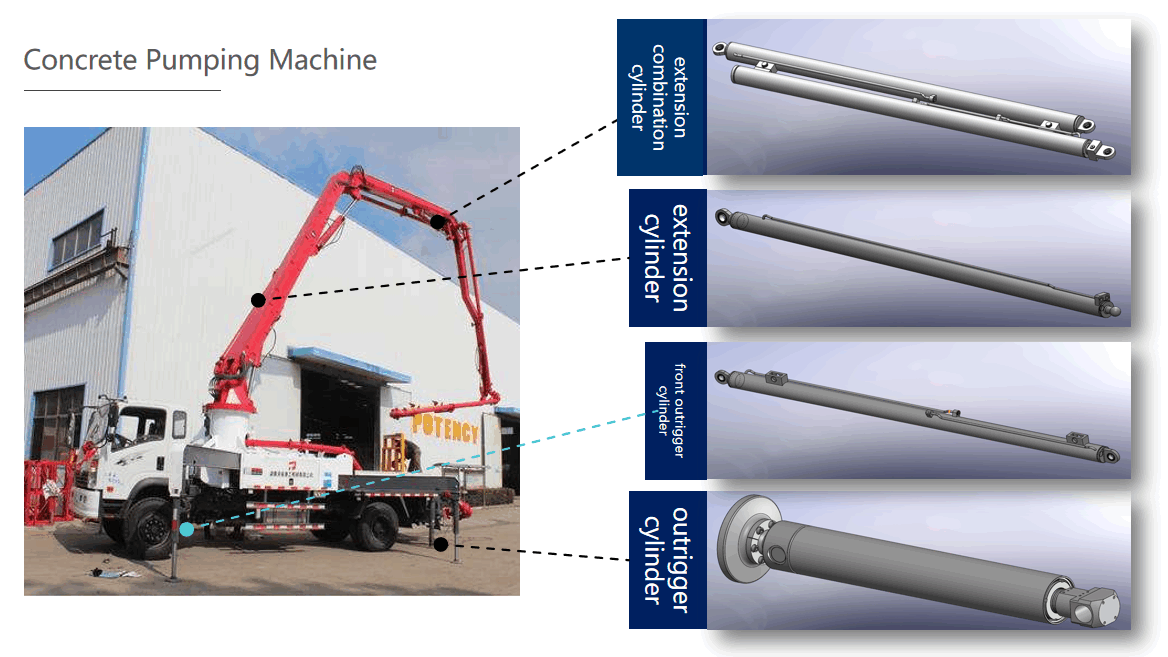

Concrete Pumping Machine: extension combination cylinder; extension cylinder; front outrigger cylinder; outrigger cylinder;

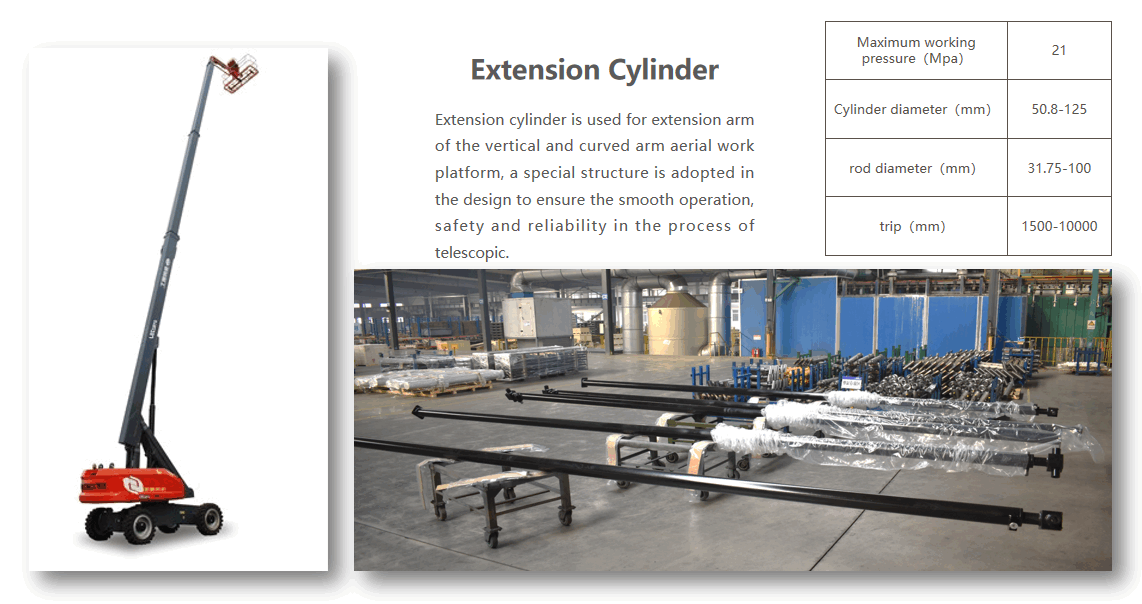

Extension Cylinder

      Extension cylinder is used for extension arm of the vertical and curved arm aerial work platform, a special structure is adopted in the design to ensure the smooth operation.safety and reliability in the process of telescopic.

Maximum working pressure(Mpa): 21

Cylinder diameter(mm): 50.8-125

rod diameter(mm): 31.75-100

trip(mm): 1500-10000

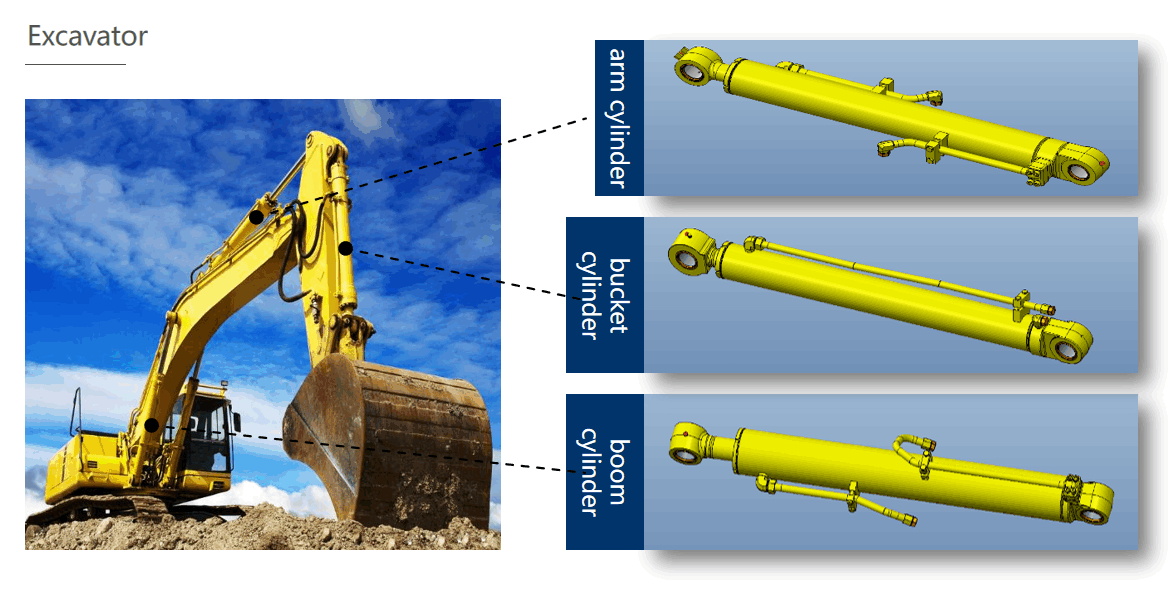

Excavator: arm cylinder; bucket cylinder; boom cylinder;

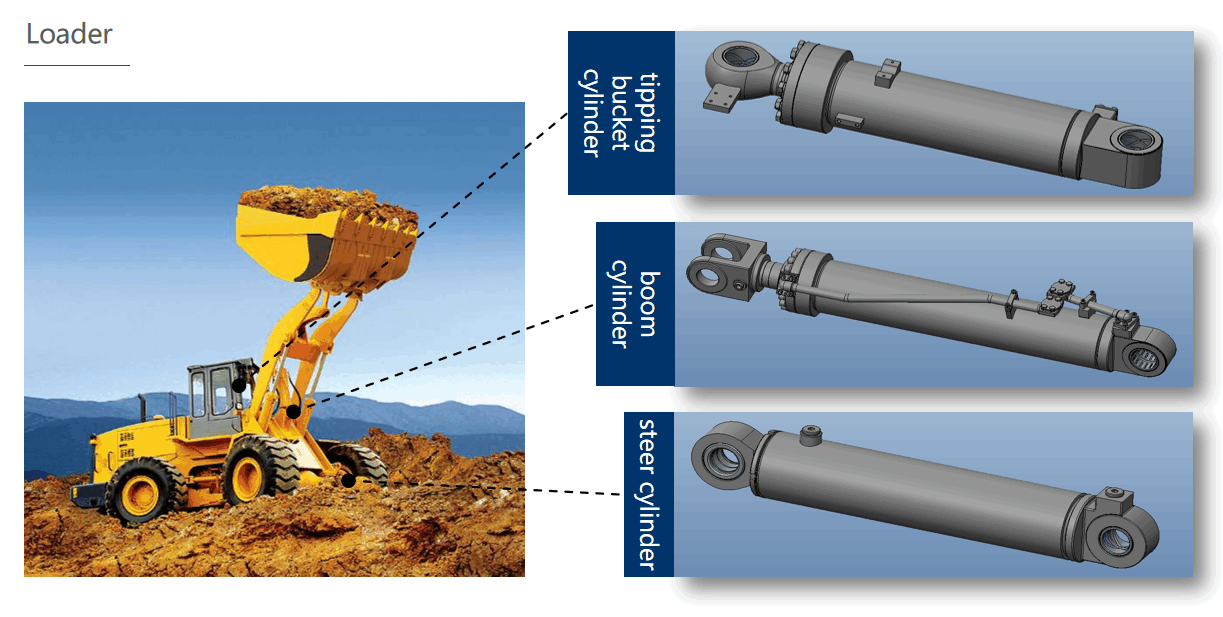

Loader: tipping bucket cylinder; boom cylinder; steer cylinder;

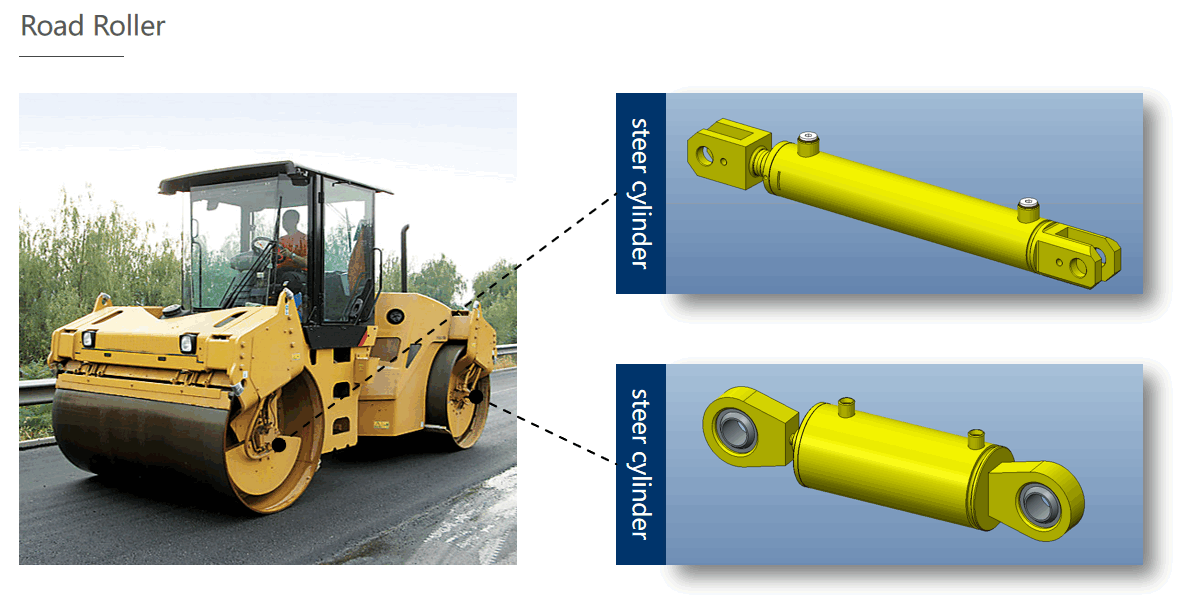

Road Roller: steer cylinder;

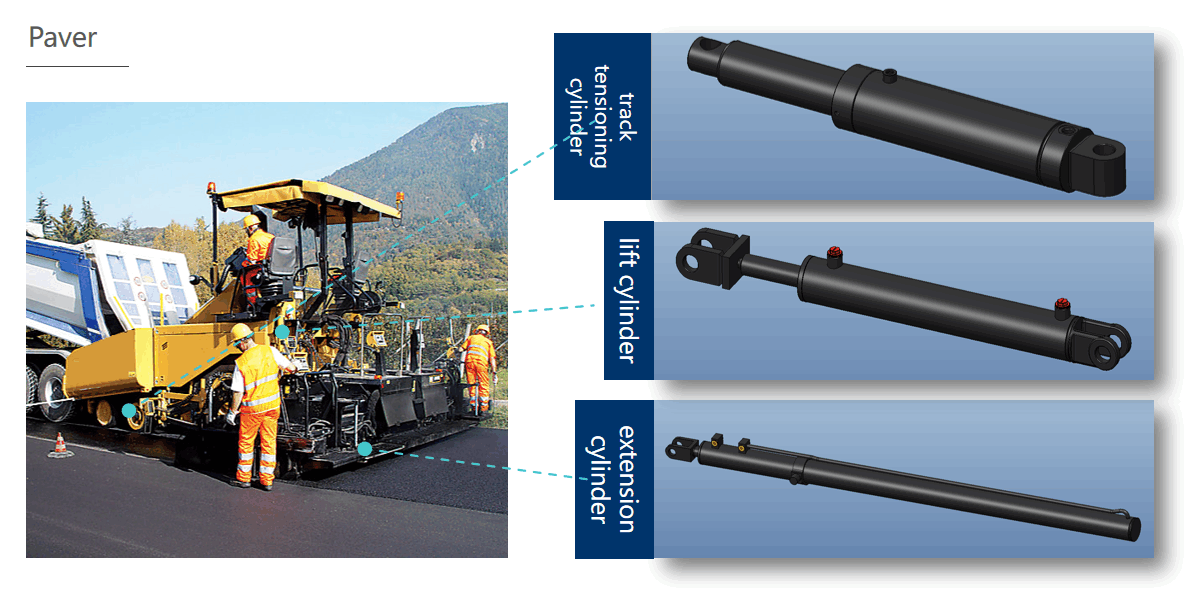

Paver: track tensioning cylinder; lift cylinder; extension cylinder;

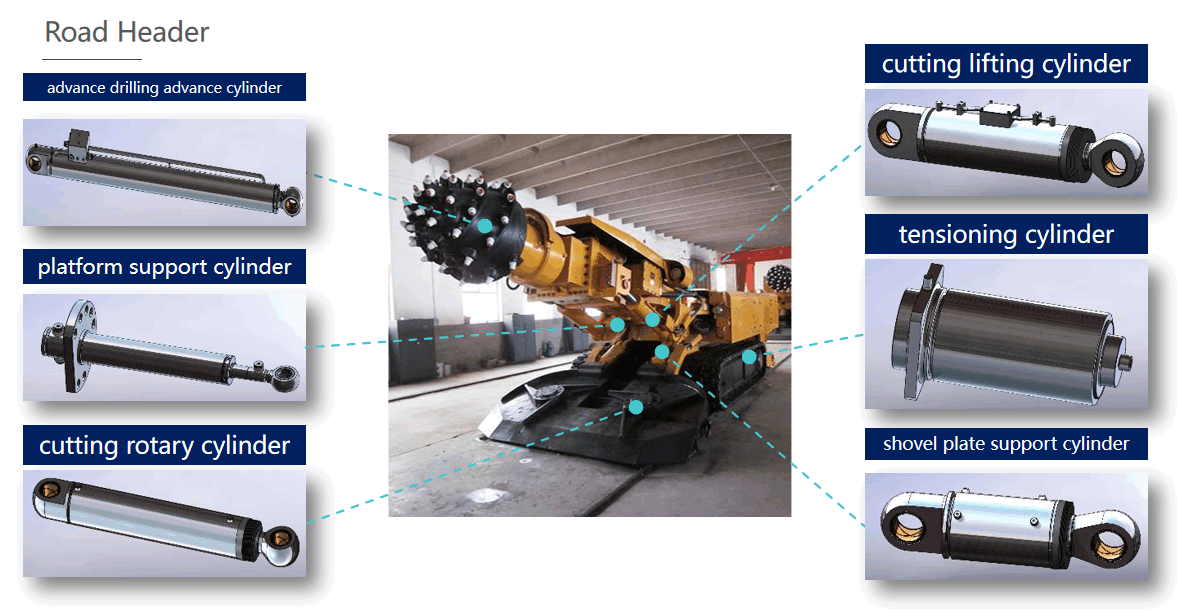

Road Header: advance drilling advance cylinder; platform support cylinder; cutting rotary cylinder; cutting lifting cylinder; tensioning cylinder; shovel plate support cylinder;

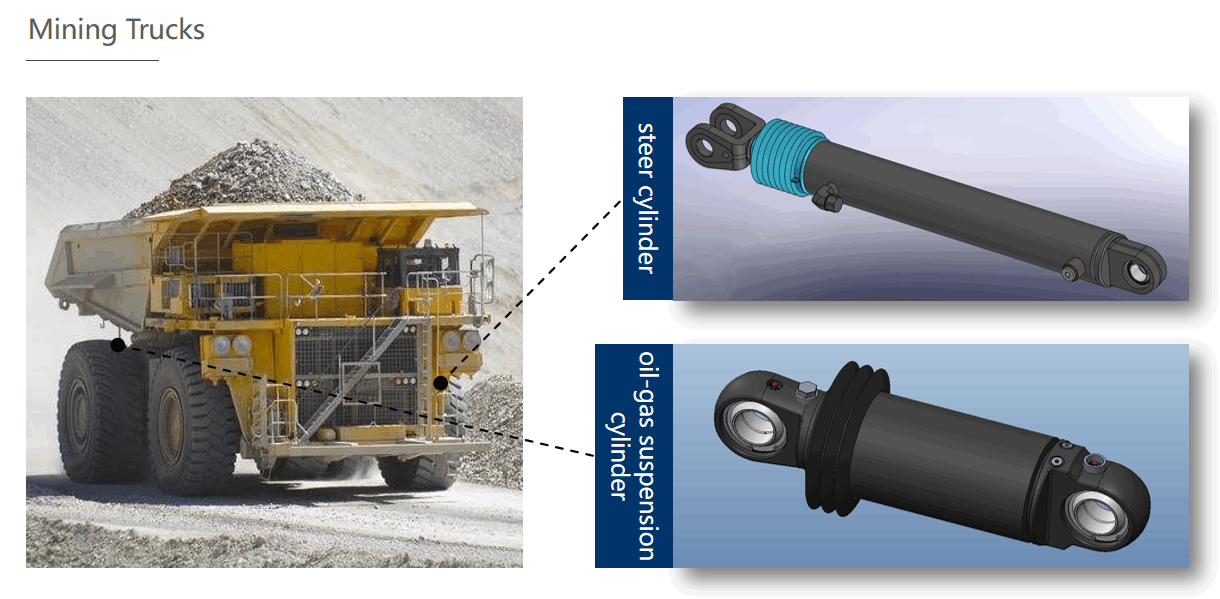

Mining Trucks: steer cylinder; oil-gas suspension cylinder;

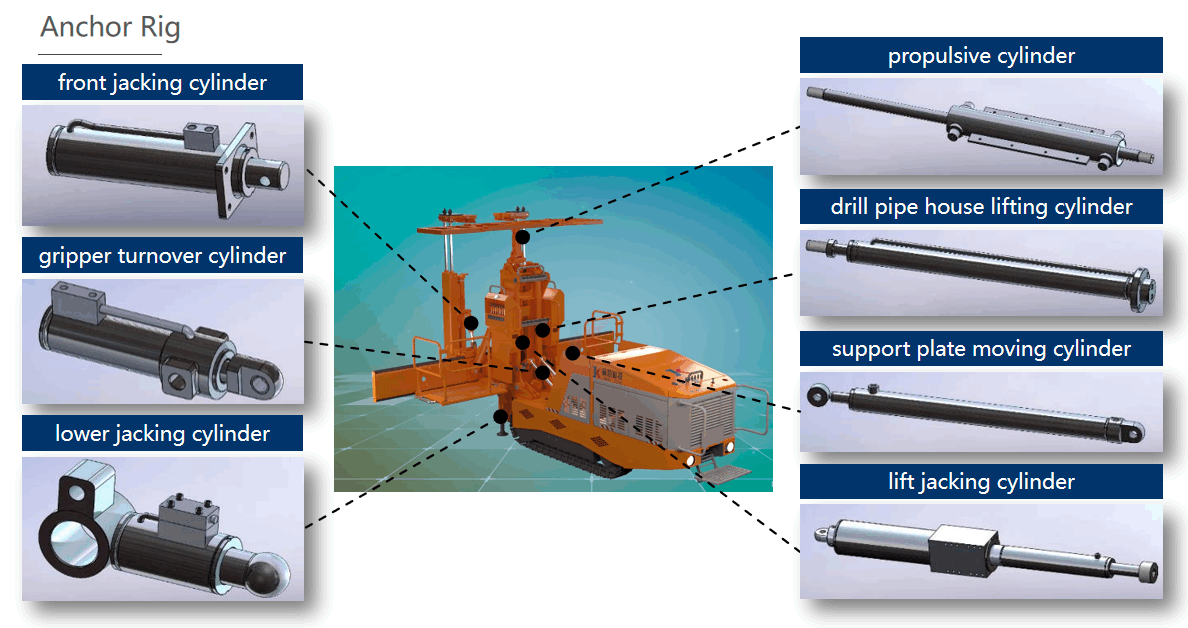

Anchor Rig: front jacking cylinder; propulsive cylinder; gripper turnover cylinder; lower jacking cylinder; drill pipe house lifting cylinder; support plate moving cylinder; lift jacking cylinder;

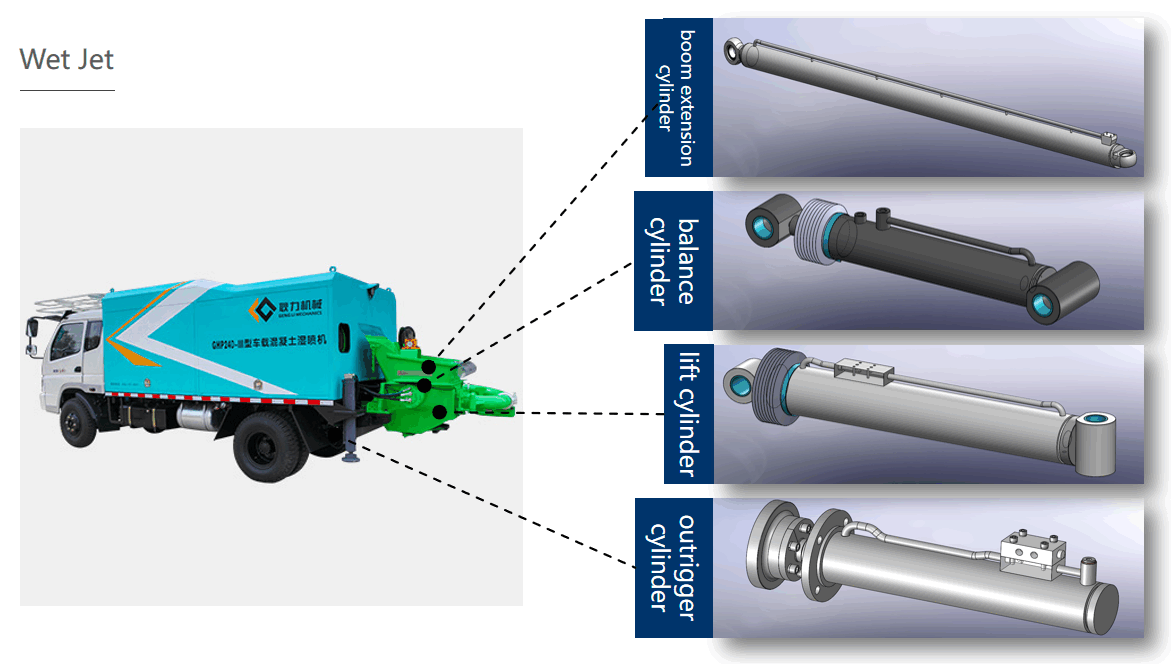

Wet Jet: boom extension cylinder; balance cylinder; lift cylinder; outrigger cylinder;

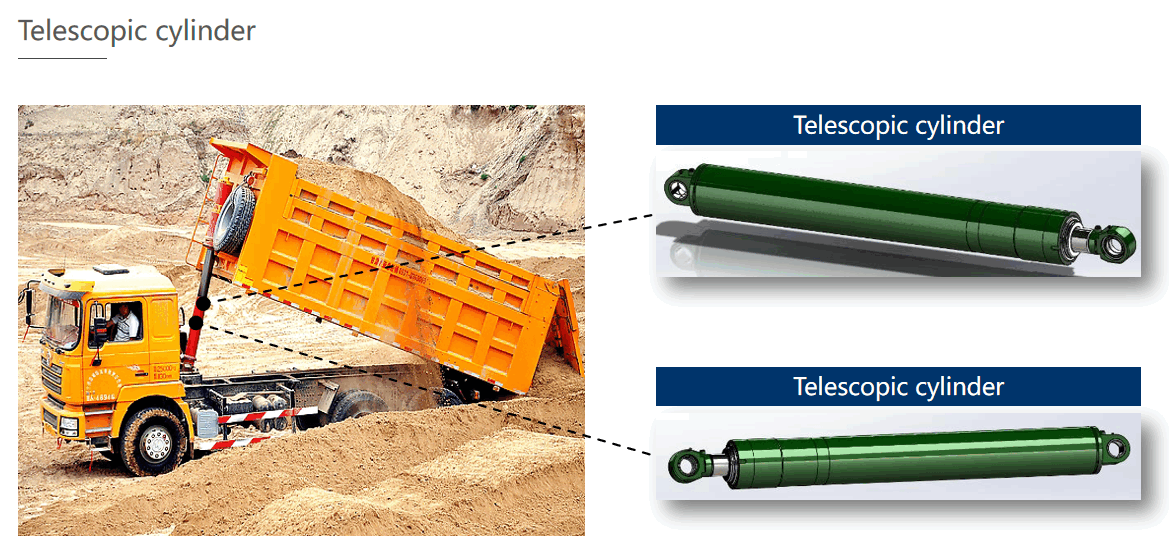

Telescopic cylinder: Telescopic cylinder;

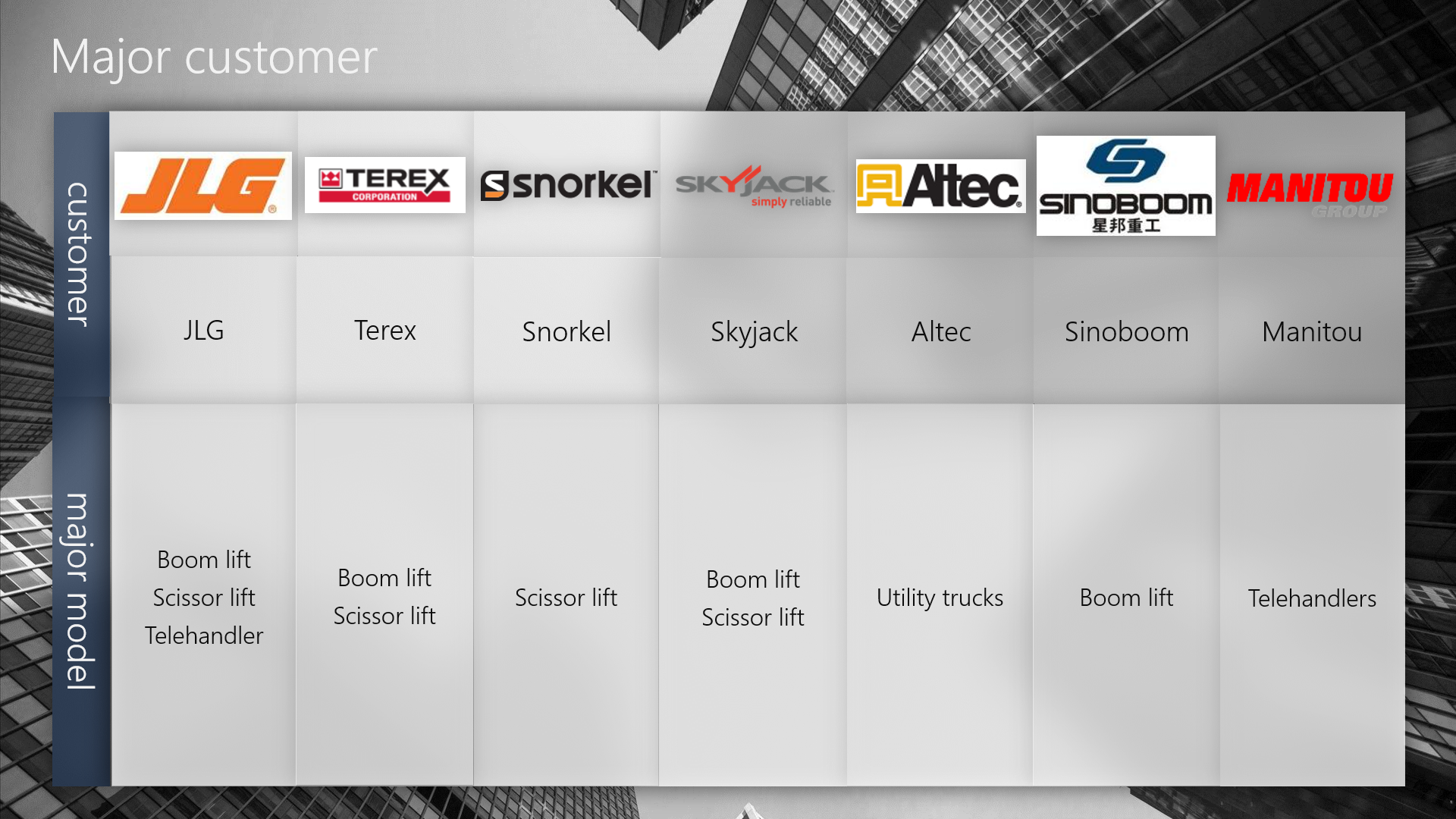

JLG: Boom lift; Scissor Lift; Telehandler;

Terex: Boom lift; Scissor Lift;

SNORKEL: Scissor lift;

SKYJACK: Boom lift; Scissor lift;

ALTEC: Utility trucks;

SINOBOOM: Boom lift;

MANITOU: Telehandler;

More than 10-Year Experience VS 0 Experience

      Since 2009,Newstar has provided more than 50000 sets of cylinder productsto lG, Terex, Skyjack, Snorkel, Altec andother world-class manufacturer of aerial work platforms. There has not been anyaccident caused by the failure ofand we have accumulated experience in the design andn of the cylinder of aerial work platforms.

Imported VS Domestic Seals

      The cylinder of Newstar aerial work platforms adopts imported original seals from well-known brands such as Parker and Simrit, whose performance of pressure,high temperature and low temperature resistance is far superior to that of domestic seals of this brand and other domestic brands.

Hollow Rod Vs Solid Rod

      The cylinder of Newstar aerial work platforms uses hollow rod.Compared with traditional solid rod, the physical performanceis completely the same, but the weight is reduced by more than 30%.

Patented Plating Vs Traditional Plating

      The rod of Newstar cylinder all use Newstar's patented high corrosion resistance and crack free nickel-chrome plating, which has past the internationally renowned authoritative inspection organization SGS inspection test, the hardness is more than 950HV, neutral salt spray test more than 1500 hours, the performance is far superior to the traditional plating.

Public & ProductInsurance VS No Insurance

      Since 2009,Newstar has been insuring PlCC's comprehensive liability insurance,which includes public liability insurance and product liability insurance, In case of property loss or casualties caused by the failure of the equipment produced by Newstar during customer use, the insurance company shall pay a maximum indemnity of USD $1 000 000 to effectively protect the rights and interests of the customer.
